Accessories

For every location there is a suitable sun shading system. Whether you choose a parasol or a sun sail, CARAVITA offers a variety of optional accessories for each model, including parasol bases, light rails, radiant heaters, side panels, rain gutters, fixings and much more.

Parasol bases
Flexible positioning

Multicube parasol base
Additional seating and storage areas

Ground sleeves
Safely and securely anchored

Side panels and rain gutters
Completely safe and dry

Radiant heater
Outdoors all year round

LED lighting
For long evenings

Sun sail masts
Robust and wind-stable

Sun sail accessories
Carabiners, turnbuckles etc.

Parasol bases

Schirmständer Plattenständer Sonnenschirm
Schirmständer Plattenständer Sonnenschirm
Schirmständer Plattenständer Sonnenschirm

Paris 60 / 85

Square concrete base with handle shells.
Weather-proof stainless steel mast.

WeightParis 60: 60 kg / Paris 85: 85 kg
SizeParis 60: 590 x 590 x 90 mm
Paris 85: 590 x 590 x 120 mm
ø mast25–55 mm
ParasolsSamara, Supremo

Rome 65 / 90

Refined granite bases with handle shells; unscrewable and weather-proof stainless steel mast; polished surface in grey.

WeightRome 65: 65 kg / Rome 90: 90 kg
SizeRome 65: ø 650 mm
Rome 90: ø 700 mm
ø mast25–55 mm
ParasolsSamara, Supremo

Oslo

Oslo Z: Galvanised steel sheet with pole fitting.
Oslo P: With additional powder coating in desired RAL colour.

Weight42 kg
Size700 x 700 x 10 mm
ø mast50 mm
ParasolsSamara, Supremo
Schirmständer Plattenständer Sonnenschirm
Schirmständer Plattenständer Sonnenschirm
Schirmständer Plattenständer Sonnenschirm

Geneva

Geneva Z: Galvanised steel sheet with pole fitting.
Geneva P: With additional powder coating in desired RAL colour.

Weight85 kg
Size1000 x 1000 x 10 mm
ø mast50 mm
ParasolsSamara, Supremo

Monaco

Mobile sheet base made of steel for the insertion of concrete slabs with dimensions 40 x 40 x 5 cm (not included in delivery).
With 4 leveling screws. Depending on the model, up to 16 concrete slabs can be inserted. Sheet bases can be remounted when using cantilever parasols. Without pole fitting suitable for Belvedere with stainless steel rotary base.

Weight25 kg / 35 kg / 60 kg
Size1000 x 1000 x 50 / 100 / 200 mm
ø mast50 mm
ParasolsSamara, Supremo, Belvedere

Monaco Z: Galvanised.
Monaco P: With additional powder coating in desired RAL colour.

Schirmständer Plattenständer Sonnenschirm
Schirmständer Plattenständer Sonnenschirm
Schirmständer Plattenständer Sonnenschirm

Dublin

Mobile sheet base made of galvanised steel for the insertion of concrete slabs with dimensions 40 x 40 x 5 cm (not included in delivery). With 4 leveling screws. Depending on the model, up to 24 concrete slabs can be inserted.

Weight of steel frame30 kg / 50 kg / 77 kg
Size1000 x 1000 x 100 / 200 / 300 mm
ParasolsBig Ben, Amalfi, Amalfi DUO 1

Dublin Z: Galvanised.
Dublin P: Galvanised with additional powder coating in desired RAL colour.

Boston 24

Like Dublin, but with different drilled holes for mounting Amalfi DUO 2 and Amalfi QUADRO.

Weight of steel frame77 kg
Size100 cm x 100 cm x 30 cm
ParasolsAmalfi DUO 2, Amalfi QUADRO

Boston Z: Galvanised.
Boston P: Galvanised with additional powder coating in desired RAL colour.

Schirmständer Plattenständer Sonnenschirm

BB sheet

BB sheet Z: Galvanised steel plate with drilled holes.
BB sheet P: With additional powder coating in desired RAL colour.

Weight39 kg
Size700 x 700 x 10 mm
ParasolsBig Ben, Amalfi, Amalfi DUO 1

Back to top…

Ground sleeves

Ground sleeve Pianura K and L

Stainless steel ground anchor to be set in concrete, with pole fitting. The upper pole fitting can be unscrewed. The bottom part remaining in the ground is then at ground level. For Belvedere with stainless steel rotary base, choose Pianura KU/LU.

Bodenhülse Sonnenschirm

Short model K

The standard solution for normal concrete foundations. The size of the foundation should be minimum 40 x 40 x 40 cm.

Length25 cm
ø mast50 mm
ParasolsSamara, Supremo, Belvedere
Bodenhülse Sonnenschirm

Long model L

A special solution for paved ground or other special cases in which soft earth, sand or air between the foundation and the ground must be bridged.

Length61 cm
ø mast50 mm
ParasolsSamara, Supremo, Belvedere

Ground sleeve Pianura KU und LU

Stainless steel ground anchor to be set in concrete, without pole fitting. Only for Belvedere with stainless steel rotary base.

Bodenhülse Sonnenschirm

Short model KU

The standard solution for normal concrete foundations. The size of the foundation should be minimum 40 x 40 x 40 cm.

Length25 cm
ø mast50 mm
ParasolBelvedere
Bodenhülse Sonnenschirm

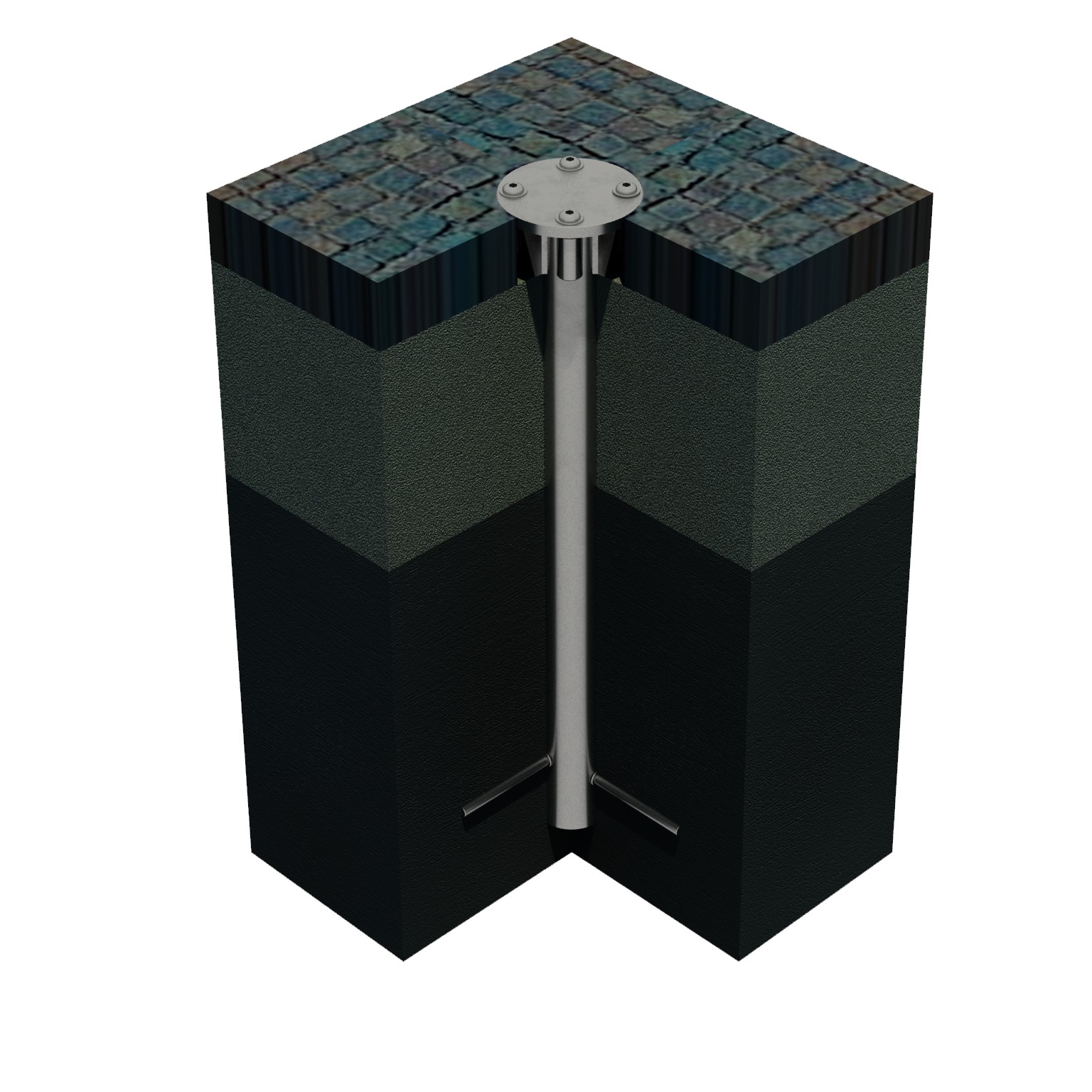

Long version LU

A special solution for paved ground or other special cases in which soft earth, sand or air between the foundation and the ground must be bridged.

Length61 cm
ø mast50 mm
ParasolBelvedere

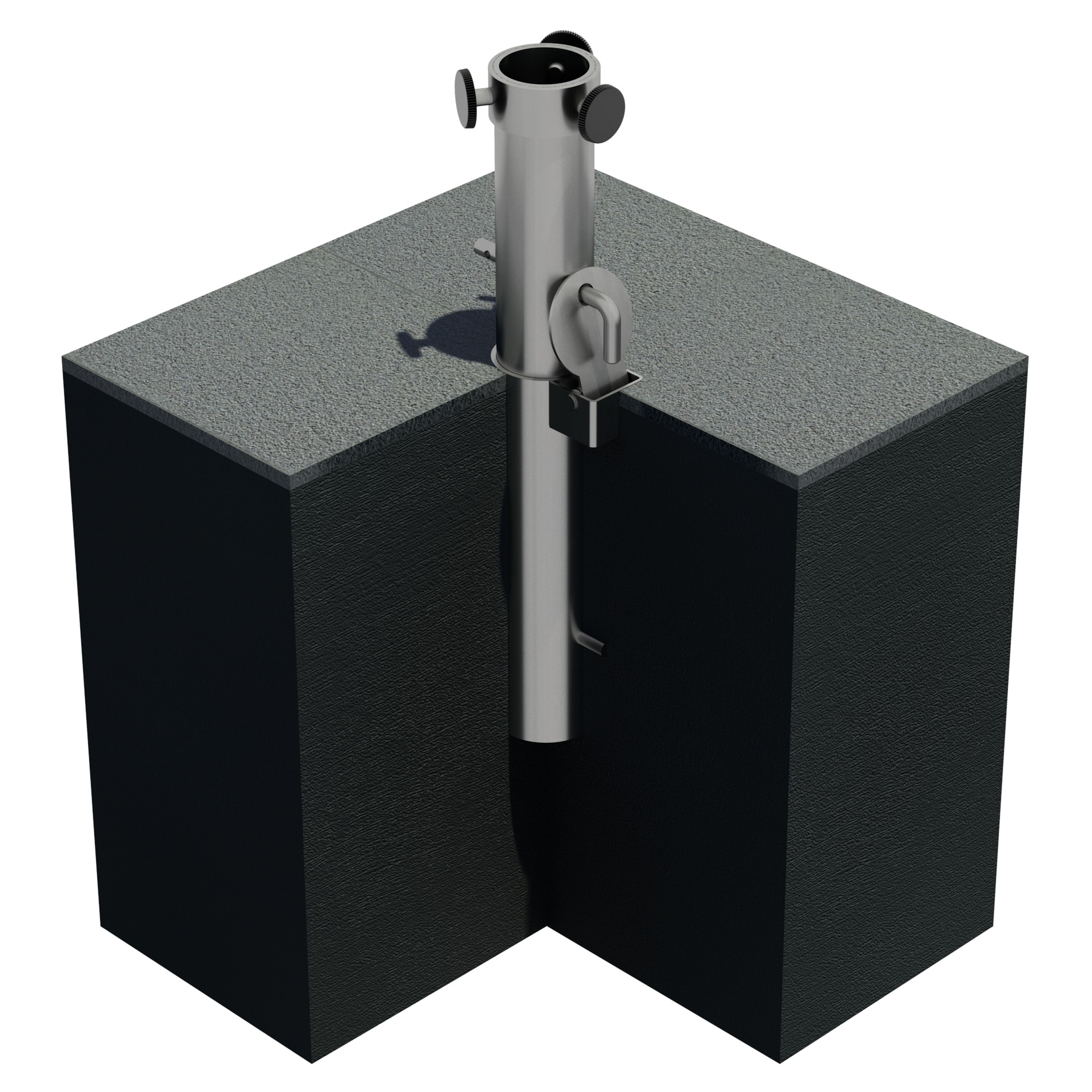

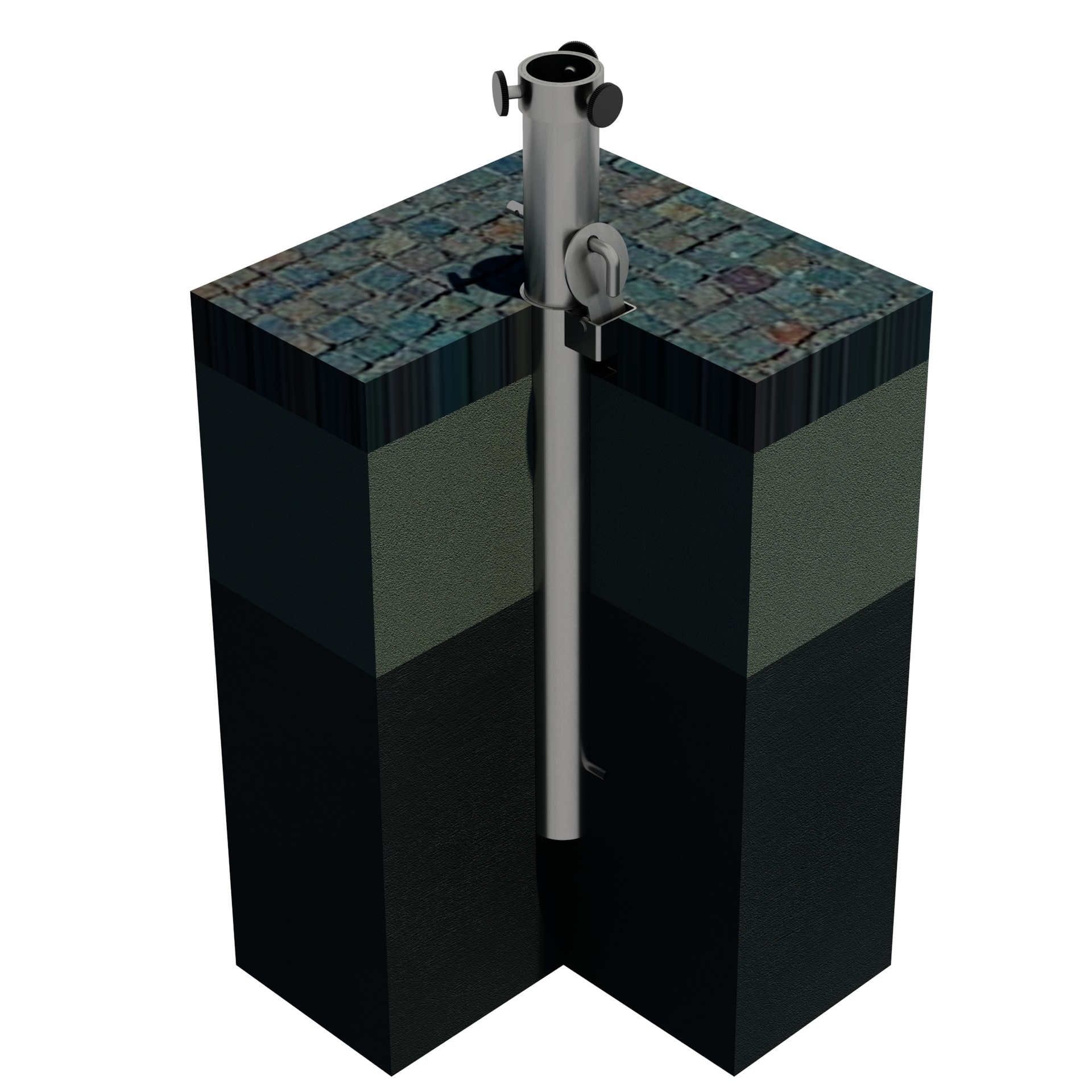

Ground sleeve Europa

Stainless steel ground sleeve to be set in concrete. The upper part of the ground sleeve can be removed. The practical closure cap is held permanently closed by a spring. The bottom part remaining in the ground is then at ground level. With theft protection. Without pole fitting, suitable for Belvedere with stainless steel rotary base.

Bodenhülse Sonnenschirm

Short model K

The standard solution for normal concrete foundations. The size of the foundation should be minimum 40 x 40 x 40 cm.

Length25 cm
ø mast50 mm
ParasolsSamara, Supremo, Belvedere

Long model L

A special solution for paved ground or other special cases in which soft earth, sand or air between the foundation and the ground must be bridged.

Length50 cm
ø mast50 mm
ParasolsSamara, Supremo, Belvedere

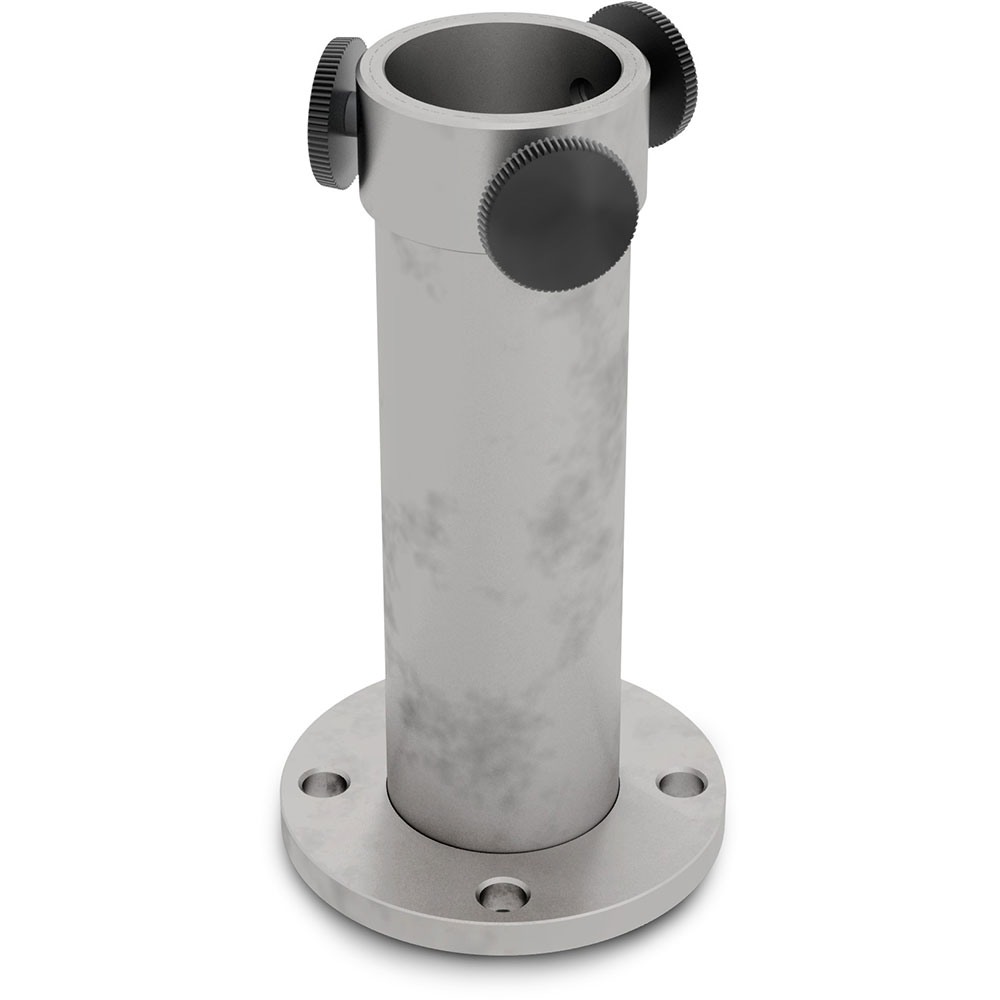

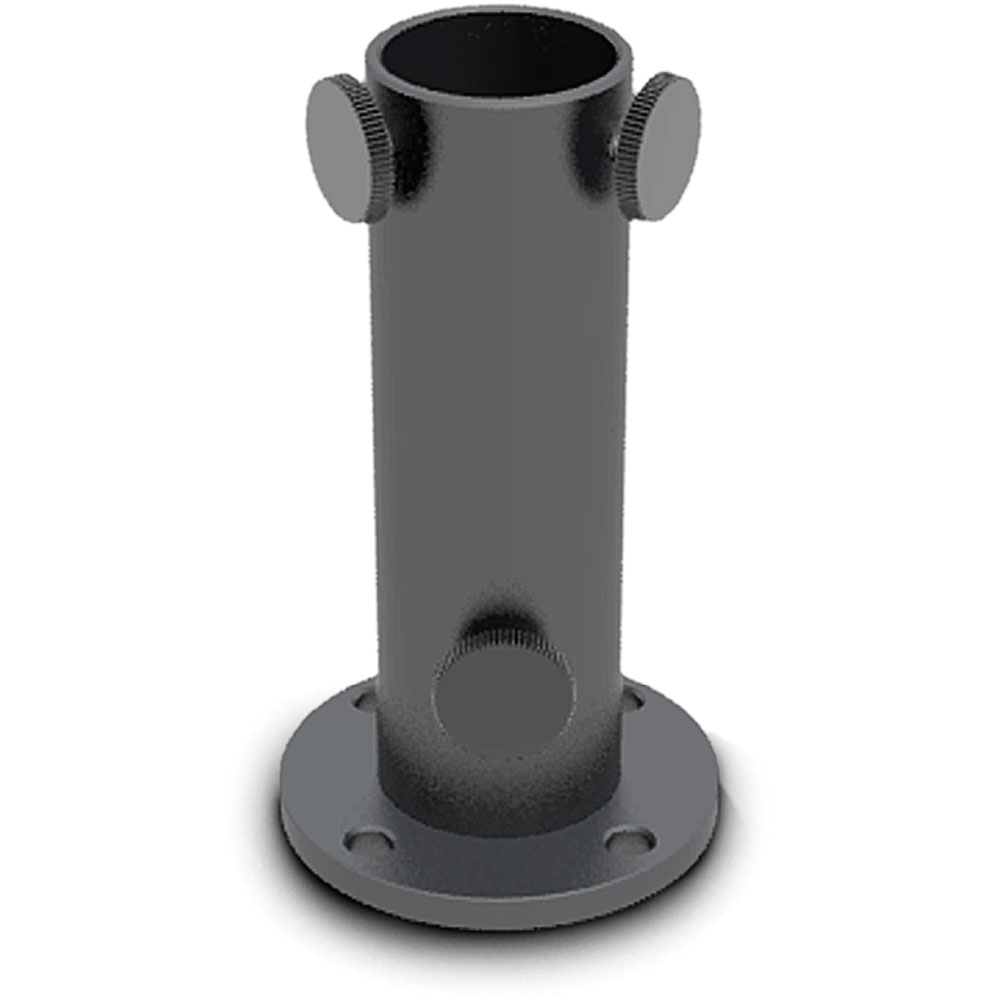

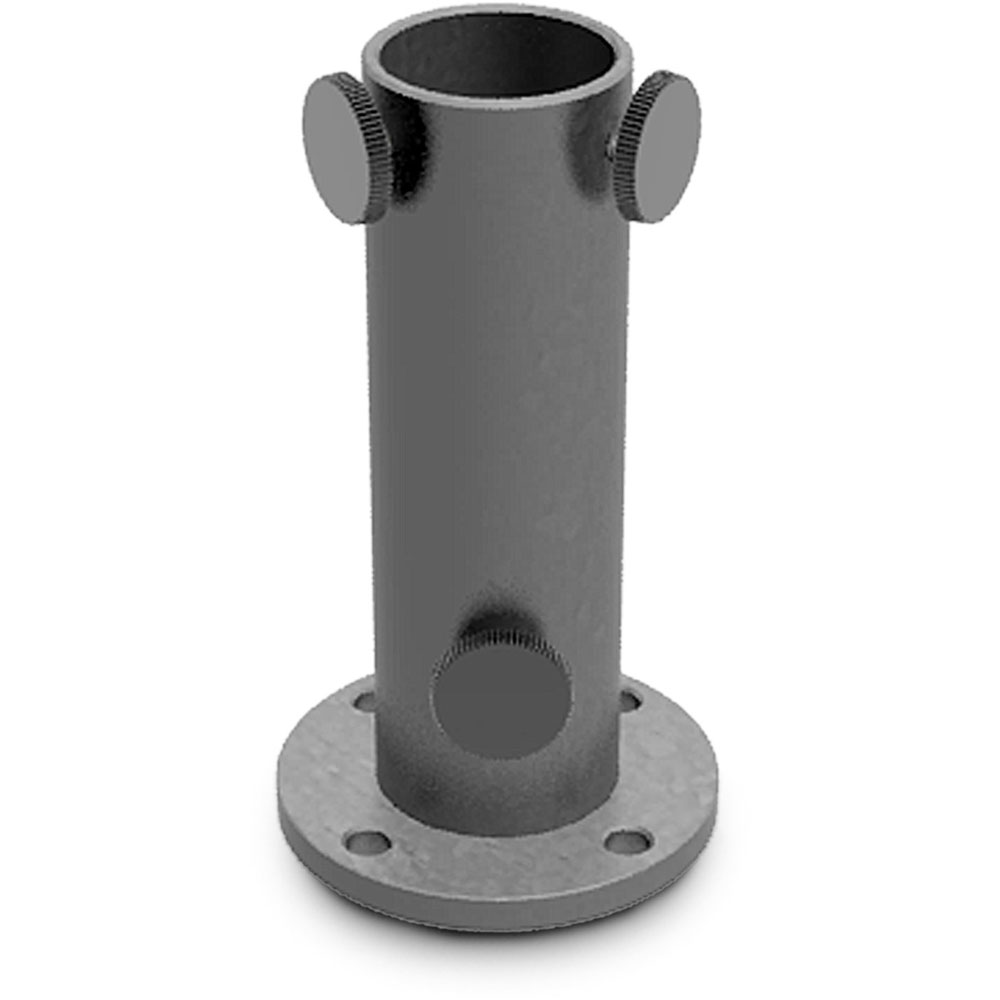

Bern pole fitting

Bases to be screwed on. Available in 3 models (from left to right). A2: stainless steel, Z: galvanised, P: powder-coated. Model P can be painted in any RAL colour.

Weight3 kg
Height200 mm
ø mast50 mm
ParasolsSamara, Supremo, Belvedere
Bodenhülse Sonnenschirm
Bodenhülse Sonnenschirm
Bodenhülse Sonnenschirm

Big Ben ground sleeves

The unobtrusive solution for setting in concrete for fixed parasol locations. Big Ben is screwed stably to the sleeve with four screws. If the parasol is removed, the sleeve forms a discreet seal at ground level.

Bodenhülse Sonnenschirm

Short model BBK

The standard solution for normal concrete foundations. The size of the foundation should be minimum 50 x 50 x 50 cm.

Length25 cm
ParasolsBig Ben, Amalfi DUO 1, Amalfi
Bodenhülse Sonnenschirm

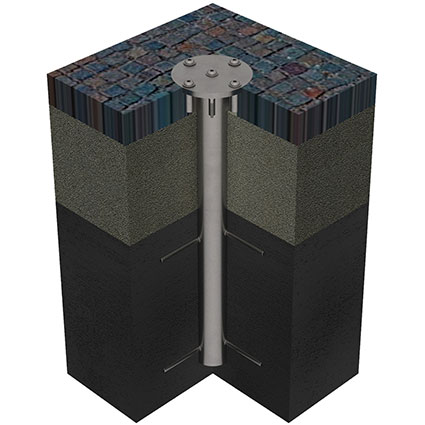

Long model BBL

A special solution for paved ground or other special cases in which soft earth, sand or air between the foundation and the ground must be bridged.

Length61 cm
ParasolsBig Ben, Amalfi DUO 1, Amalfi

Big Ben ground sleeves with electrical connection

Practical power supply for Big Ben – without any tangled cables. The mains connection is kept safe in the waterproof housing. Initial installation must be performed by an electrician.
Ground sleeves with connection for…

  • 230 V if only lighting is used on the parasol.
  • 400 V if both lighting and radiant heater are used.
Bodenhülse Sonnenschirm

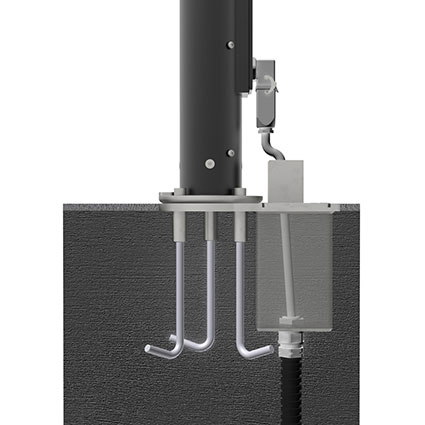

Short model BBKE

The standard solution for normal concrete foundations. The size of the foundation should be minimum 50 x 50 x 50 cm.

Length25 cm
ParasolBig Ben
Bodenhülse Sonnenschirm

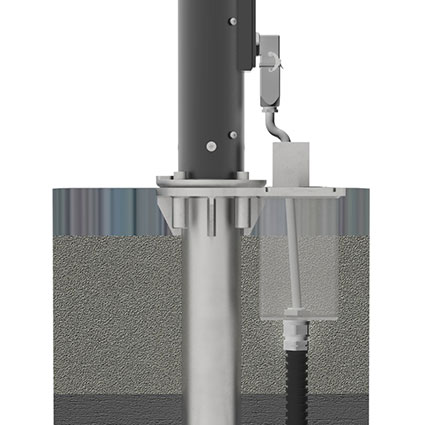

Long model BBLE

A special solution for paved ground or other special cases in which soft earth, sand or air between the foundation and the ground must be bridged.

Length61 cm
ParasolBig Ben

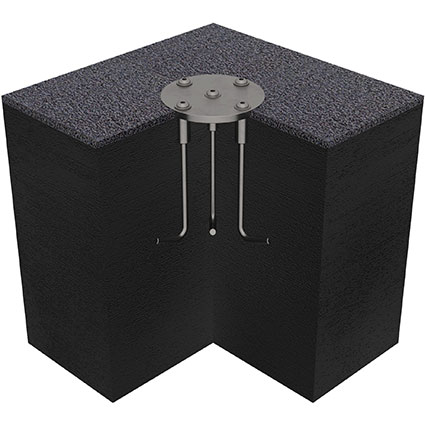

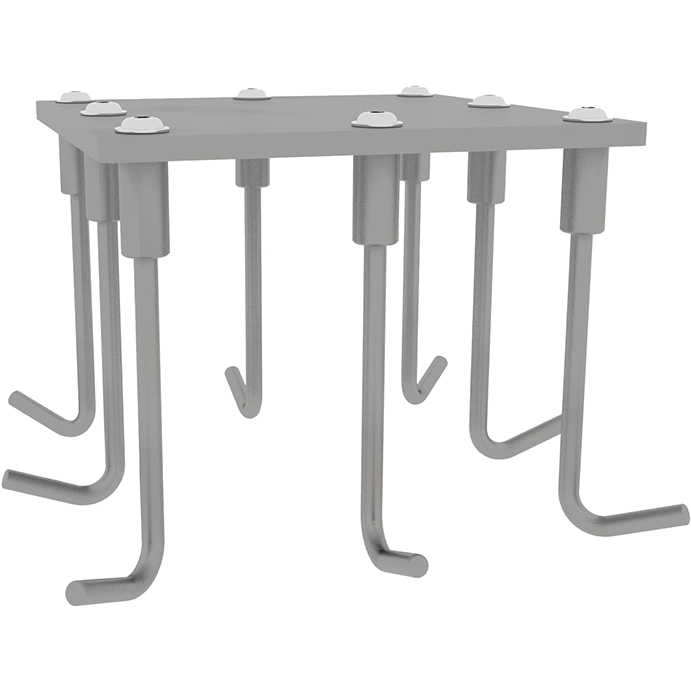

Stainless steel ground sleeve AQ

Length 20 cm. The standard solution for normal concrete foundations. The size of the foundation should be minimum 50 x 50 x 50 cm.

Weight7 kg
Length200 mm
Size240 x 240 mm
ParasolsAmalfi DUO 2, Amalfi QUADRO

Stainless steel ground sleeve AL

Length 61 cm. A special solution for paved ground or other special cases in which soft earth, sand or air between the foundation and the ground must be bridged.

Weight12 kg
Length610 mm
Size240 x 240 mm
ParasolsAmalfi DUO 2, Amalfi QUADRO

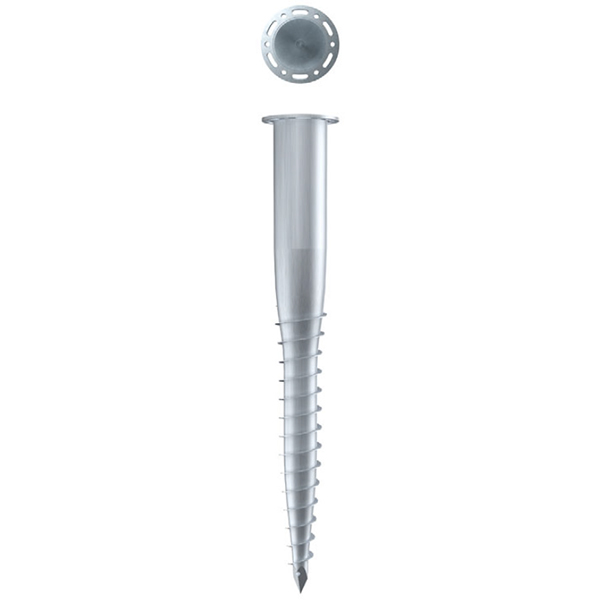

Mounting foundation

Galvanised metal pole with spiral thread to be screwed into the ground. Can be used on all stable ground. Extremely stable. Suitable for permanent installation but still easily recyclable.

Weight14 kg
Length1300 mm
Ø140 mm
 Samara, Supremo, Big Ben, Belvedere, Amalfi, Amalfi DUO 1

Back to top…

Side panels and rain gutters

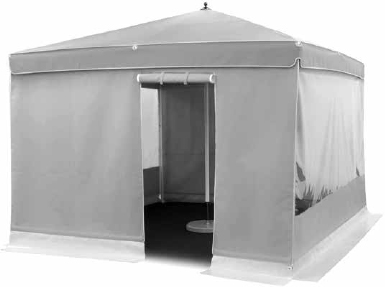

Closed side panels
Optional door available for all types and versions.

Seitenplanen Sonnenschirm

Side panels with transparent windows
Also available with mosquito net.

Complete your parasol with side panels made of premium awning fabric or other high-grade special materials. Side panels are available in different models: closed, with mosquito net or transparent plastic film window. All models are also available with a door.

Parasols Samara, Supremo, Big Ben, Amalfi*, Belvedere*

* For Amalfi and Belvedere only with support poles

Sonnenschirm Seitenplanen Wetterschutz

Attaching the side panel

Side panels are attached to the parasol struts with carabiner clips. Hook-and-loop strips connect parasols and side panels seamlessly.

Not possible without strut support

Sonnenschirm Seitenplanen Wetterschutz

Lux type: aluminium rods in hem

Lux type side panels have a hollow seam for inserting aluminium poles. These provide additional stability for the side panels.

Sonnenschirm Seitenplanen Wetterschutz

Connected by zipper

The individual side panels can be joined together with a zipper. This transforms the parasol into a pavilion in the blink of an eye.

Back to top…

Sun sail accessories

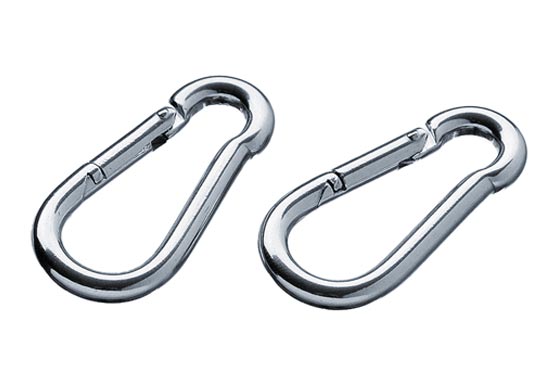

Carabiner clips

Length 50 mm | Material thickness 5 mm | Breaking load 570 kg
Length 60 mm | Material thickness 6 mm | Breaking load 670 kg

Carabiner hooksserve to attach the sail to rings and hooks.

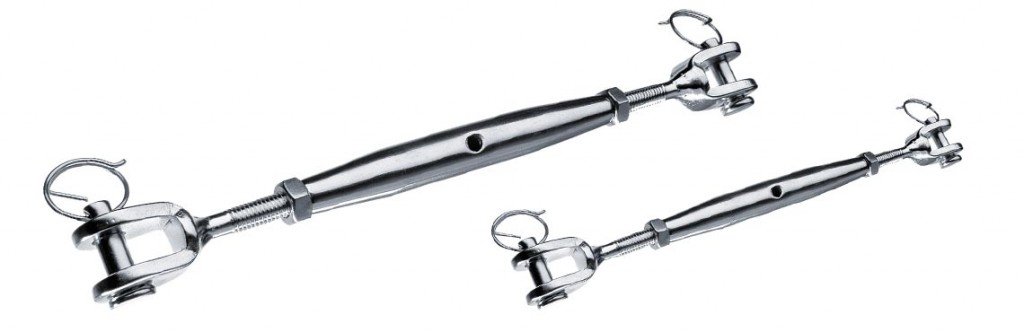

Turnbuckle

Length 150-220 mm | Breaking load 1200 kg
Length 220-300 mm | Breaking load 3100 kg
Ends with welded forks and bolt locking
Can be used without intermediate hooks

Sun sail fabrics will sag after a long period of time. To maintain optimal fabric tension, we recommend always using a turnbuckle. Twist the outer fork of the turnbuckle in or out to adjust its length. This maintains the tension of the fabric. Don’t forget to reduce the sail size in accordance with the length of the turnbuckle and maintain the correct tensile direction.

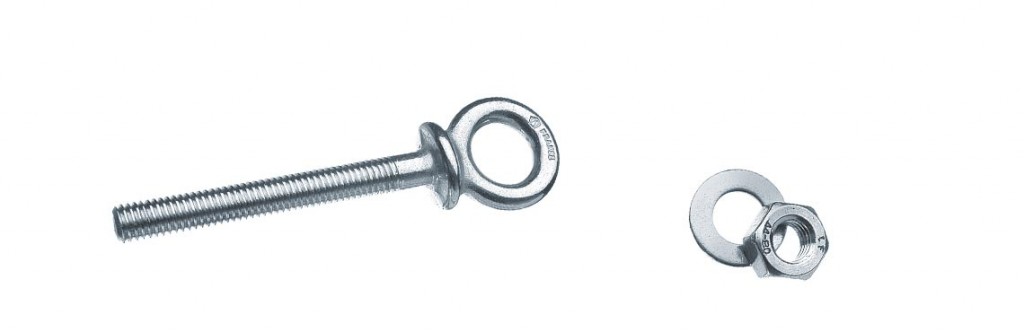

Eyebolts and ring nuts

Eyebolts are inserted into the mast and secured with a nut on the other side.

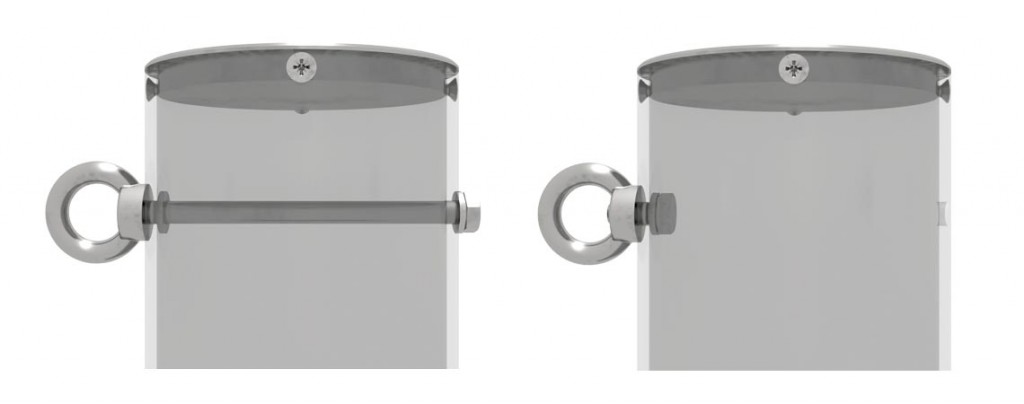

Ring nuts can be attached to the mast in two different ways:

Version 1: The ring nut is held in place by a screw inserted horizontally through the mast. It is secured with screw glue or toothed washers. Choose a screw in a suitable length for your mast.

Version 2: This is only possible on the upper end of the mast. Here, the bolt is inserted into the tube wall from inside the mast and is fastened with the ring nut. For assembly, the mast cap must be removed.

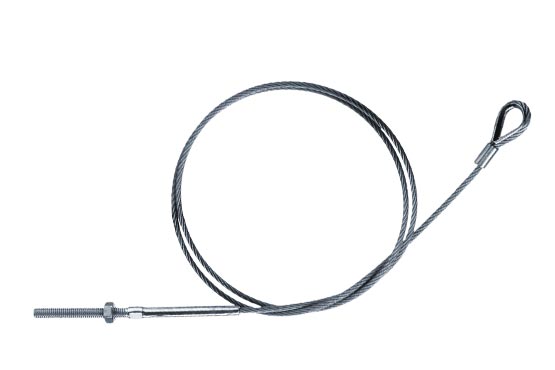

Stainless steel cable

Ø 4 mm | 6 mm

Ends with either threads or Niro thimbles

Larger distances must often be bridged to reach a suitable fixing point for your sun sail. A steel cable or a chain may be of use here. Note, however, that your sail will tend to swing in stronger winds, which cannot be avoided with increased tension. For further assistance or if you have other questions, please contact your specialist dealer or our customer service team.

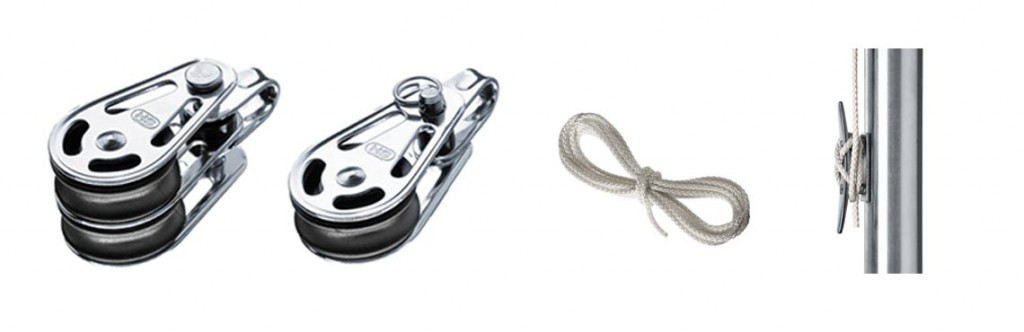

Pulley system

Stainless steel block with 1 wheel | with 2 wheels

With a pulley, a hoisting system can be built easily (see illustration), with which all sails can be quickly and easily attached, even to high masts. The upper wheel is connected to the eyebolt here (no carabiner hook is required). More wheel blocks can be attached to the pulley to make hoisting more convenient. The lower cable end can be tied down to a cable cleat. Suitable padded cables (Ø 6 mm) are available in different lengths.

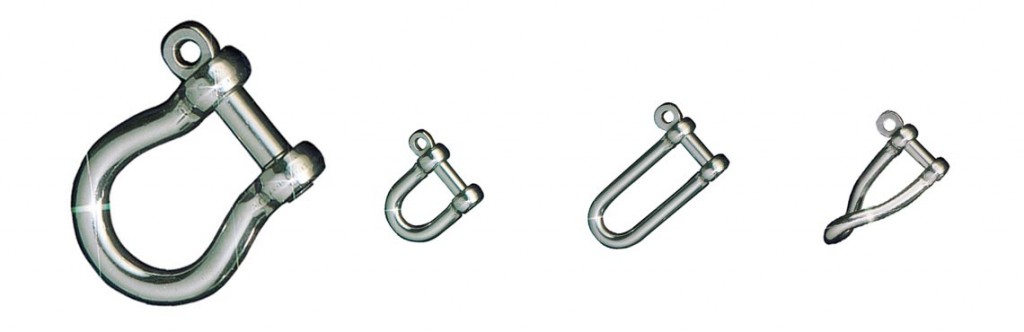

Shackle

Stainless steel | Different shapes

Shackles are a practical and versatile alternative to carabiner hooks. With shackles, you can attach your sun sail to masts, wall holders and other fixing points.

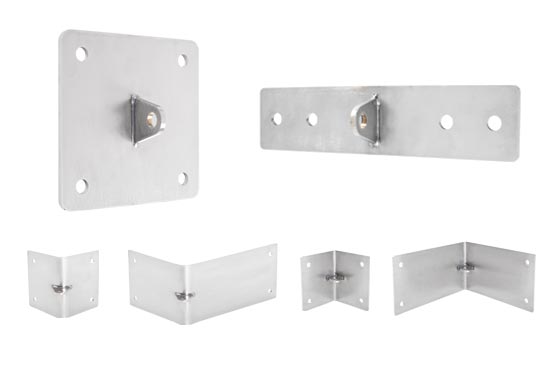

Wall brackets

Stainless steel | Material thickness 5 mm | Drilled holes 12 mm

Wall brackets can be attached to building walls, corners and in angles, in order to create a safely anchored fixing point for your sun sail.
