Technical details

FabricWater-permeable HDPE net fabric in 16 colours
The robust fabric, permeable for water and air, filters up to 98% of UV rays.
The colour chart for the tentmesh HDPE fabric can be found here.
Robust processingWelded fabric webs with 6 mm stainless steel sail with circular hem. Double reinforced corners made of solid stainless steel with tensioning device. All tension cables can be adjusted individually.

The benefits for you

  • Storm-proof design
  • Tailor-made to customer wishes
  • Permanent installation (year-round)
  • Suitable for particularly large sails
ShapeIndividual
Max. size76m²
PlanningTo support you in your planning and in choosing suitable accessories, we will gladly prepare professional statistics and precise shading progression simulations especially for your project on request.

Easy planning

It's easier than you think to plan a sun sail. To start, the fixing points of the sail must be determined. Then you can determine the dimensions of the sail with a cord.

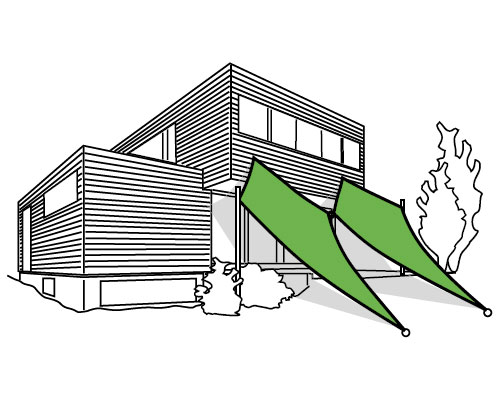

Sail made up of two diamonds

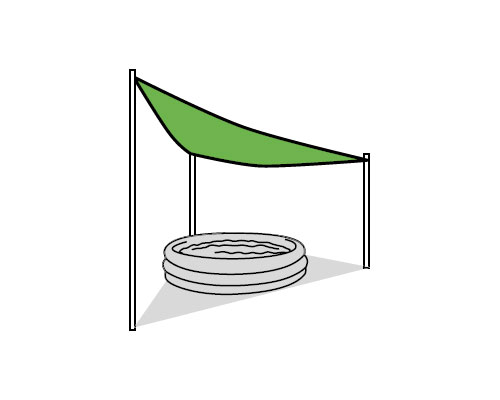

Triangle sail above paddling pools

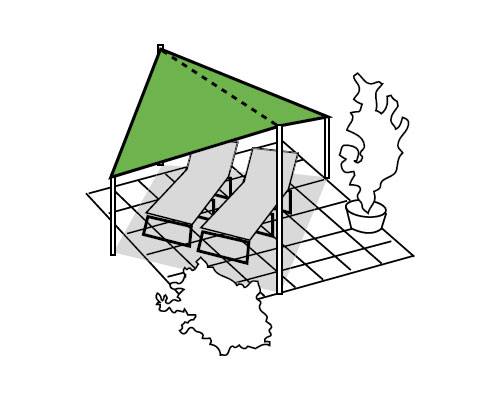

Trapezoid sun sail for patio shading

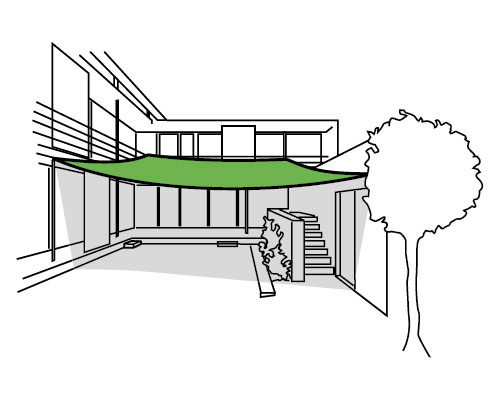

Square sun sail above courtyard

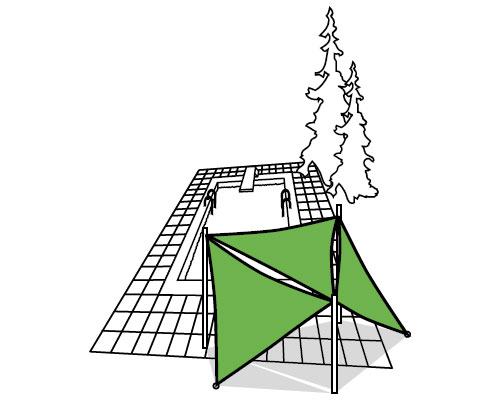

Sun shading, wind protection and visual privacy at the pool
Freestanding Butterfly

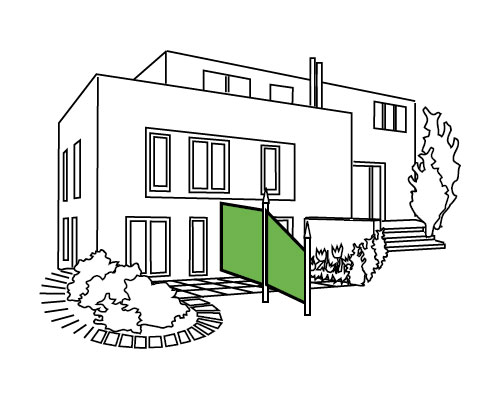

Vertically tensioned sail for visual privacy

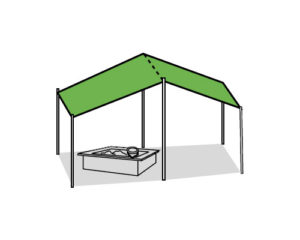

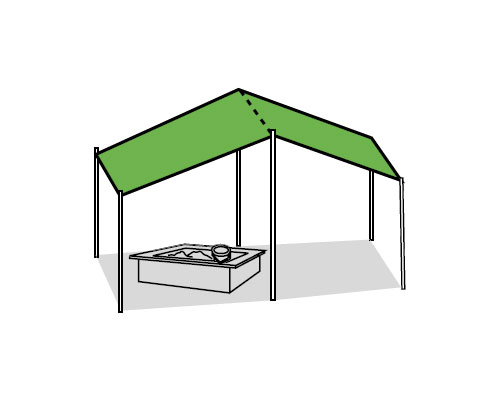

Roof gable made of rectangular sail

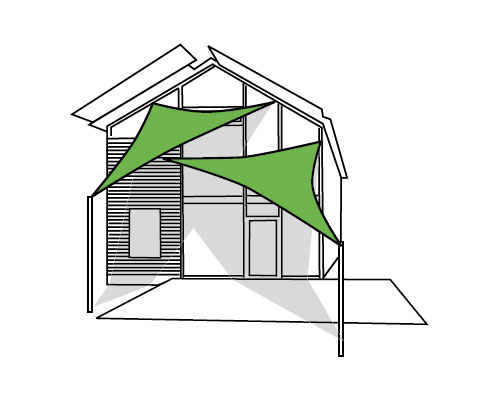

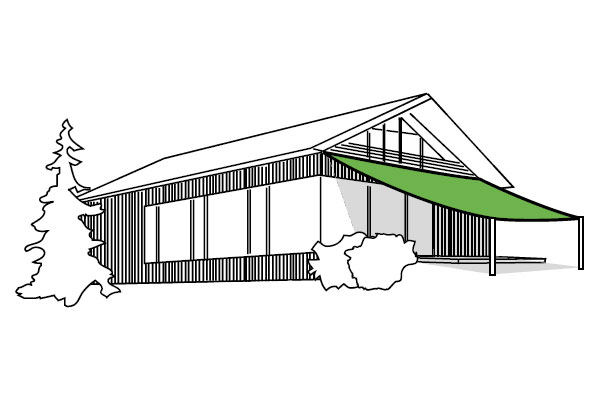

Patio and facade shading

Tentmesh

Tentmesh is a net made of UV-resistant flat and HDPE yarns. Depending on the colour, it reduces UV rays by 91% to 98% and sunrays by 77% to 96%. Because Tentmesh is water-permeable, this fabric is the optimal solution for designing flat tensioned sails. Parasols that are used all year round can also be covered with tentmesh.
Parasols with an edge length of up to 4 m can be covered with tentmesh. Not compatible with Big Ben Freestyle.



  • Net made of UV-resistant flat and HDPE yarns
  • Reduces UV rays by 91% to 98%
  • Reduces sunrays by 77% to 96%
  • Optimally suited for light membrane structures
  • Surface weight: approx. 340 g/m²

Go to fabric selection…

Stainless steel mast Ø 108

Mast with 4 mm wall thickness for setting in concrete directly. Anchoring with a ground sleeve is not possible. A flat stainless steel finial top is included in the price. The final height above ground decreases in accordance with the installation depth.

Steel mast Ø 102

Mast with 5 mm wall thickness for setting in concrete directly. Anchoring with a ground sleeve is not possible. A flat steel finial top is included in the price. The final height above ground decreases in accordance with the installation depth.

Three-way turnbuckle

A solid stainless steel three-way turnbuckle functions as a corner fixing for the especially robust design. The surrounding edges are traversed by a 6 mm thick stainless steel cable. And the fabric made of stable HDPE net fabric is permeable by water and air, but filters up to 98% of UV rays.

Get started right away?

We show you how you can design your sun sail perfectly.

Planning & Implementation
