Functional parasol with crank mechanism

With its smooth crank mechanism, this shade provider unfolds easily to its true size to welcome guests underneath. Samara dispenses warm sun rays during the day and ensures comfortable temperatures under the parasol in the evening. Even in the largest size, this visually slight parasol is amazingly easy to use.

5 Year WarrantyGarden or balcony


Technical details

OperationSmooth crank
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
FrameWhite RAL 9016, anthracite grey RAL 7016 or anodised silver, other RAL colours at extra charge
MastAluminium mast with 50 mm diameter and 3 mm wall thickness
StrutsDouble-Layer power struts 30 x 15 x 2 mm with strut reinforcement

The benefits for you

  • Closes over tables and patio furniture thanks to sophisticated telescopic system
  • Struts made of high-grade aluminium provide wind stability
  • Smooth and reliable crank mechanism
Max. size4 x 4 m3,5 x 4,5 mØ 4,5 m
Max. shading16 m216 m215 m2
Fabrics and colours
ShapesSizeHeight openHeight closedHeadroomClosing heightWeight*
250 x 250 cm273 cm334 cm225 cm152 cm23 kg
300 x 300 cm283 cm348 cm225 cm130 cm27 kg
350 x 350 cm291 cm361 cm225 cm106 cm32 kg
400 x 400 cm**301 cm376 cm225 cm84 cm36 kg
200 x 300 cm*274 cm335 cm225 cm149 cm22 kg
200 x 350 cm280 cm353 cm225 cm146 cm24 kg
200 x 400 cm285 cm358 cm225 cm127 cm26 kg
250 x 300 cm278 cm345 cm225 cm144 cm24 kg
250 x 350 cm283 cm358 cm225 cm136 cm26 kg
250 x 400 cm288 cm361 cm225 cm118 cm28 kg
300 x 350 cm287 cm358 cm225 cm120 cm28 kg
300 x 400 cm291 cm369 cm225 cm111 cm30 kg
300 x 450 cm297 cm373 cm225 cm94 cm32 kg
350 x 400 cm**295 cm372 cm225 cm98 cm34 kg
350 x 450 cm**300 cm376 cm225 cm82 cm36 kg
Ø 250 cm***260 cm327 cm226 cm203 cm18 kg
Ø 300 cm266 cm330 cm225 cm179 cm21 kg
Ø 350 cm273 cm342 cm225 cm165 cm25 kg
Ø 400 cm279 cm349 cm225 cm146 cm29 kg
Ø 450 cm286 cm363 cm225 cm134 cm32 kg
Ø 500 cm292 cm370 cm225 cm115 cm36 kg

* Weight in kilos for a standard parasol without extras.
** Handle height of crank: 90 cm (Handle height for other sizes: 100 cm)
*** These sizes are only available with wind hood.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Acrylic awning fabric LUMERA

The innovative Lumera acrylic fabric is woven with the special CBA fibre (Clean Brilliant Acrylic). Along with all the benefits of the acrylic fabric, this provides even more bonuses. The acrylic multifilament fibre has a smoother and denser surface. This means that the colours turn out richer and more radiant and the fabric’s luminance is increased for a long time.

  • Water-proof up to 460 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 290 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

High-grade hub

High stability: The Samara parasol is equipped with an especially strong and solid aluminium hub. Powder coating is available in desired RAL colour.

Smooth crank

Extremely easy to use: Samara can be opened and closed with a detachable stainless steel crank. The mechanism inside the mast ensures that the parasol can be closed easily with minimal physical effort.

Sophisticated telescopic system

The advantage: the telescopic system extends the mast when closing! Tables and patio furniture can stay where they are.

Stable struts

The parasol struts, made of 2 mm thick aluminium tube, are reinforced with special profiles in sections under particular strain.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA


The Samara is as versatile as you need it to be.

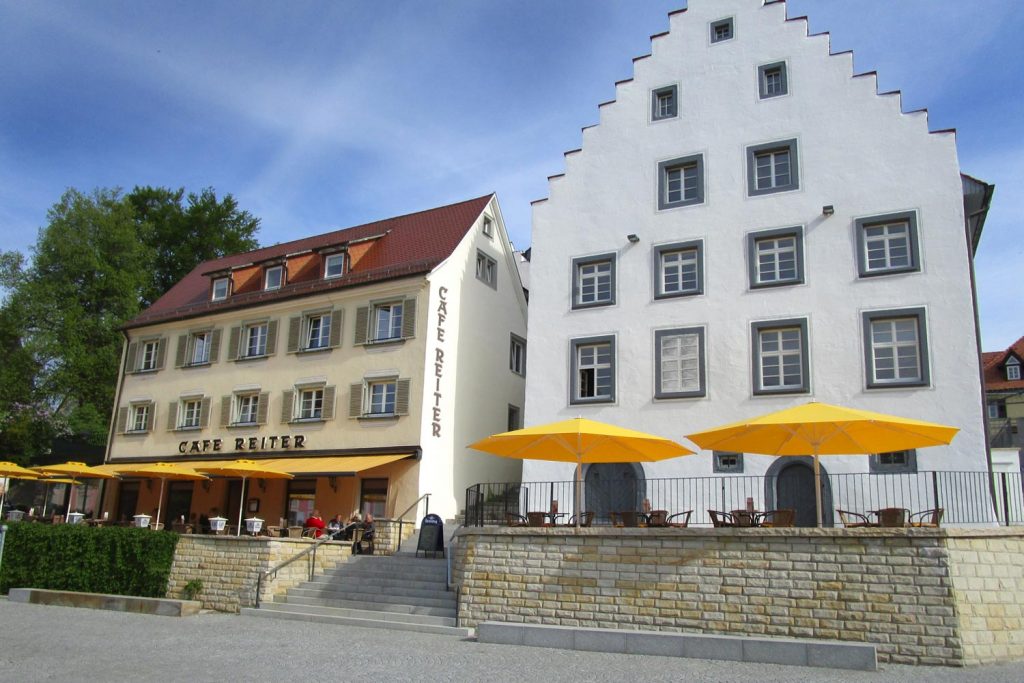

“Reiter” café, Donaueschingen, Germany
Samara Classic parasol (3 m round, fabric U202 yellow) with wind hood and Big Ben parasol (5.5m round, fabric Dickson Max yellow 6316), frame RAL 9016 traffic white, edge trimming yellow.
Learn more...
Hans im Glück, Luisenstraße, Munich, Germany
Samara parasol 3 m x 4 m, frame RAL 7016 anthracite, fabric U819 brown.
Learn more...
Preschool, Germany
Samara parasol, 4m, frame RAL9016 traffic white, fabric acrylic U 704 lime green and U 610 turquoise, edge trimming lime green and sky blue with flowing valance, wind hood and crank operation.
Learn more...
Bapas restaurant, Munich, Deutschland
Samara parasol, different sizes, frame RAL 8017 chocolate brown, fabric U910 black, edge trimming black, sewed-on valance with screen print.
Learn more...
Rothsee lake, Franconian Lake District, Germany
Samara Classic parasol, different sizes, fabric U906 grey, edge trimming E902 grey, flowing valance, with wind roof.
Learn more...
Stadtbibliothek, Schmiedsecke, Marktheidenfeld, Deutschland
Learn more...

* 5 years according to our warranty conditions
