Supremo

Technical details

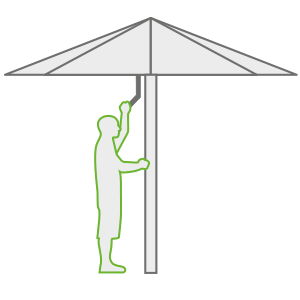

OperationEasy-Lift-Balance system
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
FrameWhite RAL 9016, anthracite grey RAL 7016 or anodised silver, other RAL colours at extra charge.
MastAluminium mast with 50 mm diameter and 3 mm wall thickness
StrutsDouble-Layer power struts 30 x 15 x 2 mm with strut reinforcement

The benefits for you

  • Easy-Lift-Balance ensures easy opening in just a few seconds
  • Closes over tables and patio furniture thanks to sophisticated telescopic system
  • High wind stability due to double strut direction
Shapes
Max. size 5 x 5 m4 x 5 mØ 5 m
Max. shading 25 m220 m220 m2
Sizes
Fabrics and colours
Features
Bases
Shapes Size Height open Height closed Headroom Closing height Handle height open Handle height closed Weight*
300 x 300 cm 282 cm 369 cm 225 cm 149 cm 175 cm 89 cm 38 kg
350 x 350 cm 291 cm 391 cm 225 cm 134 cm 174 cm 80 cm 42 kg
400 x 400 cm 300 cm 417 cm 225 cm 123 cm 173 cm 75 cm 48 kg
450 x 450 cm 309 cm 440 cm 225 cm 110 cm 177 cm 60 cm 53 kg
500 x 500 cm 317 cm 461 cm 225 cm 94 cm 180 cm 60 cm 60 kg
200 x 350 cm 279 cm 356 cm 225 cm 146 cm 167 cm 127 cm 35 kg
200 x 400 cm 285 cm 368 cm 225 cm 136 cm 173 cm 139 cm 38 kg
250 x 300 cm 278 cm 350 cm 225 cm 146 cm 181 cm 127 cm 35 kg
250 x 350 cm 283 cm 375 cm 225 cm 152 cm 171 cm 102 cm 38 kg
250 x 400 cm 288 cm 384 cm 225 cm 139 cm 176 cm 111 cm 40 kg
250 x 450 cm 293 cm 398 cm 225 cm 130 cm 176 cm 114 cm 43 kg
300 x 400 cm 292 cm 398 cm 225 cm 138 cm 175 cm 92 cm 43 kg
300 x 450 cm 297 cm 414 cm 225 cm 133 cm 175 cm 81 cm 45 kg
300 x 500 cm 302 cm 425 cm 225 cm 122 cm 175 cm 90 cm 48 kg
350 x 400 cm 295 cm 409 cm 225 cm 134 cm 173 cm 73 cm 45 kg
350 x 450 cm 300 cm 423 cm 225 cm 128 cm 178 cm 74 cm 48 kg
350 x 500 cm 305 cm 439 cm 225 cm 123 cm 178 cm 60 cm 50 kg
400 x 500 cm 309 cm 445 cm 225 cm 113 cm 177 cm 55 cm 53 kg
Ø 350 cm 272 cm 348 cm 225 cm 168 cm 175 cm 125 cm 46 kg
Ø 400 cm 278 cm 369 cm 225 cm 163 cm 171 cm 107 cm 50 kg
Ø 450 cm 285 cm 386 cm 225 cm 155 cm 178 cm 106 cm 54 kg
Ø 500 cm 291 cm 406 cm 225 cm 149 cm 174 cm 86 cm 58 kg

* Weight in kilos for a standard parasol without extras.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

Easy-Lift-Balance system

Supremo has a particularly innovative sliding mechanism: With the tap of a finger on the locking switch, the parasol automatically unfolds halfway using its own weight. All that’s left to do is lightly push the handle upward and lock it. This system allows for quick and easy handling, even with large parasols.

Struts with double support

The double strut hub provides double support for the main struts, to which the fabric is attached. An interior aluminium profile provides additional strut support for large parasols. This makes the parasol especially robust and wind-stable.

Stainless steel handle with locking switch

Quality in all parts – the stainless steel handle of the Supremo is practical as well as especially stable! When opening and closing the parasol, its locking switch snaps into place automatically.

Sophisticated telescopic system

The advantage: the telescopic system extends the mast when closing! Tables and patio furniture can stay where they are.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA

References

The Supremo is as versatile as you need it to be.

BlackTail, Manhattan, USA
Supremo parasol 3.5 m round
Learn more...
Burtons Grill, Mount Pleasant, South Carolina, USA
Supremo parasol 3.5 m x 3.5 m, frame RAL 8011 nut brown, fabric U406 chestnut, edge trimming E409 rust.
Learn more...
Kipfenberg outdoor swimming pool, Germany
Supremo parasol, 4 m x 4 m, fabric U405 red, frame RAL 7016.
Learn more...
Murrhardt outdoor swimming pool, Germany
Supremo parasol Ø 5.5 m, different fabric colours, frame anodised silver
Learn more...
Golf Club Starnberg, Germany
Supremo PLUS parasol 4.5 m x 4.5 m, fabric U101 white, frame anodised silver.
Learn more...
Supremo parasol, private installation, USA
Supremo parasol, 4 m x 4 m, fabric U608 blue and U101 white, “Loop” design, sewed-on valance, Rom 90kg parasol base and Supremo 3.5 m round, fabric U608 blue and U101 white, “Turnaround” design, flowing valance, wind roof, Florence 55 kg parasol base.
Learn more...
Supremo, private installation, Switzerland
Supremo 3×3 m, frame high gloss look, fabric acrylic waterpr. white U101, edge trimming white 00 without valance, with wind roof.
Learn more...

* 5 years according to our warranty conditions

Grande

Technical details

OperatingCrank drive including detachable stainless steel crank
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastAluminium mast with 84 mm diameter and 5 mm wall thickness
Robust anchoringThe pole is fixed to a 450 kg steel plate with several screws. The plate is placed on a concrete foundation. The Grande is therefore safe and stable in all weather conditions.

The benefits for you

  • Closes over tables and patio furniture thanks to sophisticated telescopic system
  • Struts made of high-grade aluminium provide wind stability
  • Smooth and reliable crank mechanism
Shapes
Max. size8 x 8 m6 x 8 mØ 10 m
Max. shading64 m248 m279 m2
Sizes
Fabrics & colours
Features
Schirmständer
Shapes Size Height open Height closed Headroom Closing Weight*
650 x 650 cm 391 cm 610 cm 255 cm 129 cm 230 kg
700 x 700 cm 400 cm 615 cm 255 cm 97 cm 240 kg
750 x 750 cm 409 cm 620 cm 255 cm 65 cm 252 kg
800 x 800 cm 417 cm 626 cm 255 cm 35 cm 262 kg
400 x 800 cm 387 cm 562 cm 255 cm 94 cm 196 kg
500 x 800 cm 393 cm 577 cm 255 cm 84 cm 202 kg
600 x 700 cm 390 cm 570 cm 255 cm 88 cm 198 kg
600 x 800 cm 400 cm 595 cm 255 cm 73 cm 210 kg
Ø 750 cm 369 cm 516 cm 255 cm 122 cm 216 kg
Ø 800 cm 375 cm 531 cm 255 cm 112 cm 226 kg
Ø 850 cm 382 cm 547 cm 255 cm 102 cm 237 kg
Ø 900 cm 388 cm 563 cm 255 cm 92 cm 247 kg
Ø 950 cm 394 cm 579 cm 255 cm 83 cm 257 kg
Ø 1000 cm** 404 cm 595 cm 255 cm 72 cm 267 kg

* Weight in kilos for a standard parasol without extras.
** Requires official approval.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

High quality umbrella ring

Schirmkranz Grande von CARAVITA 10004215

High stability: Parasol Grande is equipped with a particularly strong and solid aluminum rim. Powder coating in RAL color of your choice is possible.

Smooth crank

Super easy to use: Samara can be opened and closed via a removable stainless steel crank. The mechanism inside the mast ensures that the umbrella can be closed very easily with minimal effort.

Sophisticated telescopic system

The advantage: the telescopic system extends the pole when closing! Tables and patio furniture can simply stay where they are.

Power struts

Powerstreben Sonnenschirm Grande Von CARAVITA

The parasol struts made of strong 60 x 30 mm aluminium with additional U-reinforcements provide wind stability even at high spans.

Robust anchoring

Schirmständer Grande Von CARAVITA 10004214

The pole is fixed to a 450 kg steel plate with several screws. The plate is placed on a concrete foundation. The Grande is therefore safe and stable in all weather conditions.

CARAVITA catalogue

Experience the world of CARAVITA

* 5 years according to our warranty conditions

Amalfi QUADRO

Technical details

OperationSelf-stopping winch with detachable crank
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastHigh-Power mast – 150 x 150 mm and 5 mm wall thickness – triple welded
StrutsAluminium struts 30 x 15 x 2 mm

The benefits for you

  • Robust aluminium frame for high wind stability
  • Smooth integrated crank winch
Shapes
Max. size 3,5 x 3,5 m3 x 4 mØ 4 m
Max. shading 12 m212 m212 m2
Sizes
Fabrics and colours
Features
Bases

Shapes Size Height open Headroom Closing height Distance Weight*
200 x 200 cm** 295 cm 225 cm 117 cm 25 cm 128 kg
250 x 250 cm 304 cm 225 cm 89 cm 25 cm 144 kg
300 x 300 cm 314 cm 225 cm 61 cm 25 cm 159 kg
350 x 350 cm 325 cm 225 cm 34 cm 25 cm 170 kg
Ø 250 cm** 289 cm 225 cm 132 cm 25 cm 137 kg
Ø 300 cm 297 cm 225 cm 112 cm 25 cm 148 kg
Ø 350 cm 305 cm 225 cm 92 cm 25 cm 160 kg
Ø 400 cm 312 cm 225 cm 83 cm 25 cm 172 kg
250 x 300 cm 310 cm 225 cm 74 cm 25 / 76 cm 155 kg
250 x 350 cm not possible not possible not possible not possible
250 x 400 cm not possible not possible not possible not possible
300 x 350 cm 321 cm 225 cm 47 cm 25 / 76 cm 172 kg

* Weight in kilos for a standard parasol without extras.
** These sizes are only available with wind hood.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

Levelable parasol head

With the levelling function, the canopy can be adjusted horizontally by a few degrees in the direction of the mast. The mechanism is suitable for adjusting the canopy, but not for inclining it.

Smooth crank winch

Amalfi opens and closes very easily with the smooth crank winch. Self-locking holds the parasol in any position.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA

References

The Amalfi Quadro is as versatile as you need it to be.

“Capriccio” restaurant, Berlin, Germany
Amalfi QUADRO parasol 3 x 3 m, fabric U408 bordeaux, edge trimming E404 bordeaux, frame RAL 9006 white aluminium.
Learn more...

* 5 years according to our warranty conditions

Amalfi DUO

Technical details

OperationSelf-stopping winch with detachable crank
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastHigh-Power mast – 70 x 70 mm and 4 mm wall thickness – triple welded (DUO1) and High-Power mast – 150 x 150 mm and 5 mm wall thickness – triple welded (DUO2)
StrutsAluminium struts 30 x 15 x 2 mm

The benefits for you

  • Robust aluminium frame for high wind stability
  • Smooth integrated crank winch
Shapes
Max. size 3,5 x 3,5 m3 x 4 mØ 4 m
Max. shading12 m212 m212 m2
Sizes
Fabrics and colours
Features
Bases
Shapes Size Height open Headroom Closing height Distance Weight*
200 x 200 cm** 288 cm 225 cm 116 cm 40 cm 58 kg
250 x 250 cm 297 cm 225 cm 89 cm 40 cm 65 kg
300 x 300 cm 307 cm 225 cm 61 cm 40 cm 74 kg
350 x 350 cm 316 cm 225 cm 34 cm 40 cm 79 kg
Ø 250 cm** 283 cm 225 cm 132 cm 40 cm 62 kg
Ø 300 cm 290 cm 225 cm 112 cm 40 cm 67 kg
Ø 350 cm 297 cm 225 cm 93 cm 40 cm 72 kg
Ø 400 cm 303 cm 225 cm 73 cm 40 cm 77 kg
200 x 300 cm** 289 cm 225 cm 86 cm 40 cm 69 kg
200 x 350 cm 303 cm 225 cm 69 cm 40 cm 72 kg
200 x 400 cm 309 cm 225 cm 53 cm 40 cm 74 kg
250 x 300 cm 302 cm 225 cm 74 cm 40 cm 71 kg
250 x 350 cm 307 cm 225 cm 59 cm 40 cm 76 kg
250 x 400 cm 312 cm 225 cm 43 cm 40 cm 79 kg
300 x 350 cm 311 cm 225 cm 47 cm 40 cm 79 kg
300 x 400 cm 318 cm 225 cm 32 cm 40 cm 83 kg
200 x 300 cm** 289 cm 225 cm 86 cm 40 cm 67 kg
200 x 350 cm 304 cm 225 cm 69 cm 40 cm 69 kg
200 x 400 cm 311 cm 225 cm 53 cm 40 cm 72 kg
250 x 300 cm 302 cm 225 cm 74 cm 40 cm 70 kg
250 x 350 cm 308 cm 225 cm 59 cm 40 cm 74 kg
250 x 400 cm 314 cm 225 cm 43 cm 40 cm 76 kg
300 x 350 cm 312 cm 225 cm 47 cm 40 cm 78 kg
300 x 400 cm 318 cm 225 cm 32 cm 40 cm 81 kg

* Weight in kilos for a standard parasol without extras.
** These sizes are only available with wind hood.

Shapes Size Height open Headroom Closing height Distance Weight*
200 x 200 cm** 295 cm 225 cm 117 cm 25 cm 83 kg
250 x 250 cm 304 cm 225 cm 89 cm 25 cm 91 kg
300 x 300 cm 314 cm 225 cm 61 cm 25 cm 99 kg
350 x 350 cm 325 cm 225 cm 34 cm 25 cm 105 kg
Ø 250 cm** 289 cm 225 cm 132 cm 25 cm 87 kg
Ø 300 cm 297 cm 225 cm 112 cm 25 cm 93 kg
Ø 350 cm 305 cm 225 cm 92 cm 25 cm 98 kg
Ø 400 cm 312 cm 225 cm 83 cm 15 cm 104 kg
200 x 300 cm** 304 cm 225 cm 86 cm 42 cm 92 kg
200 x 350 cm 309 cm 225 cm 69 cm 42 cm 95 kg
200 x 400 cm 314 cm 225 cm 51 cm 42 cm 98 kg
250 x 300 cm 309 cm 225 cm 75 cm 43 cm 95 kg
250 x 350 cm 314 cm 225 cm 59 cm 44 cm 100 kg
250 x 400 cm 319 cm 225 cm 43 cm 43 cm 103 kg
300 x 350 cm 320 cm 225 cm 47 cm 42 cm 104 kg
300 x 400 cm 324 cm 225 cm 32 cm 41 cm 108 kg
200 x 300 cm** 306 cm 225 cm 86 cm 25 cm 94 kg
200 x 350 cm 313 cm 225 cm 69 cm 25 cm 98 kg
200 x 400 cm not possible not possible not possible not possible
250 x 300 cm 310 cm 225 cm 74 cm 25 cm 96 kg
250 x 350 cm 317 cm 225 cm 59 cm 25 cm 102 kg
250 x 400 cm not possible not possible not possible not possible
300 x 350 cm 321 cm 225 cm 47 cm 25 cm 105 kg
300 x 400 cm not possible not possible not possible not possible

* Weight in kilos for a standard parasol without extras.
** These sizes are only available with wind hood.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

Levelable parasol head

With the levelling function, the canopy can be adjusted horizontally by a few degrees in the direction of the mast. The mechanism is suitable for adjusting the canopy, but not for inclining it.

Smooth crank winch

Amalfi opens and closes very easily with the smooth crank winch. Self-locking holds the parasol in any position.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA

References

The Amalfi Duo is as versatile as you need it to be.

Modehaus Blach, Grafenau, Germany
Amalfi DUO 2 parasol with double canopy, 3 m x 3 m, frame RAL 7016 anthracite grey, fabric U101 white, edge trimming white.
Learn more...
Pidinger workshops, Piding, Germany
Amalfi Classic parasol 3 m x 3 m, fabric U203 yellow, edge trimming yellow 32, frame RAL 7012, with wind hood.
Learn more...

* 5 years according to our warranty conditions

Belvedere

Technical details

OperationSophisticated handle mechanism
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastAluminium mast with a diameter of 60 x 60 mm and a wall thickness 4 mm
StrutsAluminium struts 30 x 15 x 2 mm

The benefits for you

  • Strong aluminium frame ensures longevity
  • Easy-Flap system for opening in just a few seconds
  • More convenient with stainless steel base rotatable by 360°
  • Unique look and high-grade components
Shapes
Max. size 3 x 3 mØ 4 m
Max. shading 9 m212 m2
Sizes
Fabrics and colours
Features
Bases
Shapes Size Height open Height closed Headroom Closing height Distance
from mast centre to
parasol centre
Free space
for lever
behind mast
Weight*
250 x 250 cm 270 cm 275 cm 218 cm 85 cm 130 cm 65 cm 33 kg
300 x 300 cm 270 cm 275 cm 208 cm 50 cm 130 cm 65 cm 35 kg
Ø 350 cm 270 cm 275 cm 218 cm 90 cm 130 cm 65 cm 37 kg
Ø 400 cm 270 cm 275 cm 208 cm 65 cm 130 cm 65 cm 39 kg

* Weight in kilos for a standard parasol without extras.
Belvedere with stainless steel rotary base is slightly heavier.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

Easy-Flap system

Belvedere has an opening mechanism which is unique among parasols. When closed, it takes up as little space as a central mast parasol. When opened, the parasol canopy moves to the side and the Belvedere becomes a practical cantilever parasol.

Stainless steel rotary foot

Sophisticated mechanism: The rotary foot made of stainless steel, rotatable by 360°, is screwed directly onto the ground sleeve or the parasol base. The rotating function is conveniently unlocked by pressing on the pedal. When the pedal is released, the mechanism engages and holds the parasol in position.

High-grade hub

The hubs are the parasol components with the greatest load and are made of solid aluminium. Painted in any RAL standard colour. This guarantees high stability and ensures that you can enjoy your shading system for many years. Hubs can be selected with a chosen RAL standard colour to match the frame colour.

Robust mast

Belvedere has an extremely stable mast, thanks to its 60 mm diameter and 4 mm wall thickness. For square parasols, the mast is delivered in the “LEFT” version as standard. The centre of the parasol is located to the left of the mast. If the mast is to be delivered in the “RIGHT” version, please indicate this when ordering.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA

References

The Belvedere parasol is as versatile as you need it to be.

Belvedere parasol, private installation, Germany
Belvedere Plus parasol 4m round, frame 7012 basalt grey, fabric acrylic U912 grey-beige, edge trimming 65 anthracite, sewed-on valance, with wind hood.
Learn more...

* 5 years according to our warranty conditions

Samara

Technical details

OperationSmooth crank
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
FrameWhite RAL 9016, anthracite grey RAL 7016 or anodised silver, other RAL colours at extra charge
MastAluminium mast with 50 mm diameter and 3 mm wall thickness
StrutsDouble-Layer power struts 30 x 15 x 2 mm with strut reinforcement

The benefits for you

  • Closes over tables and patio furniture thanks to sophisticated telescopic system
  • Struts made of high-grade aluminium provide wind stability
  • Smooth and reliable crank mechanism
Shapes
Max. size 4 x 4 m3,5 x 4,5 mØ 4,5 m
Max. shading 16 m216 m215 m2
Sizes
Fabrics and colours
Features
Bases

Shapes Size Height open Height closed Headroom Closing height Weight*
250 x 250 cm 273 cm 334 cm 225 cm 152 cm 23 kg
300 x 300 cm 283 cm 348 cm 225 cm 130 cm 27 kg
350 x 350 cm 291 cm 361 cm 225 cm 106 cm 32 kg
400 x 400 cm** 301 cm 376 cm 225 cm 84 cm 36 kg
200 x 300 cm* 274 cm 335 cm 225 cm 149 cm 22 kg
200 x 350 cm 280 cm 353 cm 225 cm 146 cm 24 kg
200 x 400 cm 285 cm 358 cm 225 cm 127 cm 26 kg
250 x 300 cm 278 cm 345 cm 225 cm 144 cm 24 kg
250 x 350 cm 283 cm 358 cm 225 cm 136 cm 26 kg
250 x 400 cm 288 cm 361 cm 225 cm 118 cm 28 kg
300 x 350 cm 287 cm 358 cm 225 cm 120 cm 28 kg
300 x 400 cm 291 cm 369 cm 225 cm 111 cm 30 kg
300 x 450 cm 297 cm 373 cm 225 cm 94 cm 32 kg
350 x 400 cm** 295 cm 372 cm 225 cm 98 cm 34 kg
350 x 450 cm** 300 cm 376 cm 225 cm 82 cm 36 kg
Ø 250 cm*** 260 cm 327 cm 226 cm 203 cm 18 kg
Ø 300 cm 266 cm 330 cm 225 cm 179 cm 21 kg
Ø 350 cm 273 cm 342 cm 225 cm 165 cm 25 kg
Ø 400 cm 279 cm 349 cm 225 cm 146 cm 29 kg
Ø 450 cm 286 cm 363 cm 225 cm 134 cm 32 kg
Ø 500 cm 292 cm 370 cm 225 cm 115 cm 36 kg

* Weight in kilos for a standard parasol without extras.
** Handle height of crank: 90 cm (Handle height for other sizes: 100 cm)
*** These sizes are only available with wind hood.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

High-grade hub

High stability: The Samara parasol is equipped with an especially strong and solid aluminium hub. Powder coating is available in desired RAL colour.

Smooth crank

Extremely easy to use: Samara can be opened and closed with a detachable stainless steel crank. The mechanism inside the mast ensures that the parasol can be closed easily with minimal physical effort.

Sophisticated telescopic system

The advantage: the telescopic system extends the mast when closing! Tables and patio furniture can stay where they are.

Stable struts

The parasol struts, made of 2 mm thick aluminium tube, are reinforced with special profiles in sections under particular strain.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA

References

The Samara is as versatile as you need it to be.

“Reiter” café, Donaueschingen, Germany
Samara Classic parasol (3 m round, fabric U202 yellow) with wind hood and Big Ben parasol (5.5m round, fabric Dickson Max yellow 6316), frame RAL 9016 traffic white, edge trimming yellow.
Learn more...
Hans im Glück, Luisenstraße, Munich, Germany
Samara parasol 3 m x 4 m, frame RAL 7016 anthracite, fabric U819 brown.
Learn more...
Preschool, Germany
Samara parasol, 4m, frame RAL9016 traffic white, fabric acrylic U 704 lime green and U 610 turquoise, edge trimming lime green and sky blue with flowing valance, wind hood and crank operation.
Learn more...
Bapas restaurant, Munich, Deutschland
Samara parasol, different sizes, frame RAL 8017 chocolate brown, fabric U910 black, edge trimming black, sewed-on valance with screen print.
Learn more...
Rothsee lake, Franconian Lake District, Germany
Samara Classic parasol, different sizes, fabric U906 grey, edge trimming E902 grey, flowing valance, with wind roof.
Learn more...
Stadtbibliothek, Schmiedsecke, Marktheidenfeld, Deutschland
Learn more...

* 5 years according to our warranty conditions

Amalfi

Technical details

OperationSelf-stopping winch with detachable crank or motor
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastHigh-Power mast – 60 x 100 mm and 4 mm wall thickness – triple welded
StrutsAluminium struts 30 x 15 x 2 mm

The benefits for you

  • Robust aluminium frame for high wind stability
  • Smooth integrated crank winch
  • Mast for wall installation available
  • Optional with stainless steel rotary base
  • Optionally available with two or four canopies
Shapes
Max. size 3,5 x 3,5 m3 x 4 mØ 4 m
Max. shading 12 m212 m212 m2

Sizes
Fabrics and colours
Features
Bases
Shapes Size Height open Headroom Closing height Distance
from mast centre to
parasol centre
Weight*
200 x 200 cm ** 305 cm 252 cm 135 cm 183 cm 33 kg
250 x 250 cm 305 cm 228 cm 95 cm 183 cm 36 kg
300 x 300 cm 305 cm 220 cm 58 cm 183 cm 39 kg
350 x 350 cm 305 cm 210 cm 18 cm 183 cm 41 kg
200 x 300 cm ** 305 cm 250 cm 114 cm 183 cm 37 kg
200 x 350 cm 305 cm 225 cm 72 cm 183 cm 38 kg
200 x 400 cm 305 cm 220 cm 50 cm 183 cm 40 kg
250 x 300 cm 305 cm 225 cm 77 cm 183 cm 38 kg
250 x 350 cm 305 cm 220 cm 57 cm 183 cm 40 kg
250 x 400 cm 305 cm 212 cm 35 cm 183 cm 41 kg
300 x 350 cm 305 cm 214 cm 38 cm 183 cm 42 kg
300 x 400 cm 305 cm 208 cm 18 cm 183 cm 43 kg
Ø 250 cm** 305 cm 246 cm 155 cm 183 cm 35 kg
Ø 300 cm 305 cm 220 cm 108 cm 183 cm 37 kg
Ø 350 cm 305 cm 230 cm 100 cm 183 cm 39 kg
Ø 400 cm 305 cm 222 cm 72 cm 183 cm 43 kg

* Weight in kilos for a standard parasol without extras.
** These sizes are only available with wind hood.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

Levelable parasol head

With the levelling function, the canopy can be adjusted horizontally by a few degrees in the direction of the mast. The mechanism is suitable for adjusting the canopy, but not for inclining it.

Optional: stainless steel rotary foot

Sophisticated mechanism: The rotary foot made of stainless steel, rotatable by 360°, is screwed directly onto the ground sleeve or the parasol base. The rotating function is conveniently unlocked by pressing on the pedal. When the pedal is released, the mechanism engages and holds the parasol in position.

Smooth crank winch

Amalfi opens and closes very easily with the smooth crank winch. Self-locking holds the parasol in any position.

Space-saving wall installation

Sonnenschirm Amalfi Wandmontage Skizze

Save space by mounting the Amalfi to walls. The High-Power mast with a diameter of 60 mm and a wall thickness of 4 mm is produced for you according to your exact requirements, such as the wall installation height, the desired crank height etc. After closing the parasol, the Amalfi can be turned to the side to save space.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

CARAVITA catalogue

Experience the world of CARAVITA

References

The Amalfi parasol is as versatile as you need it to be.

Bönnigheim outdoor swimming pool, Germany
Amalfi parasol 3.5 x 3.5 m, fabric U202 yellow, edge trimming yellow 32 frame RAL 9007 grey aluminium
Learn more...
Hotel Five Senses, Granada, Spain
Amalfi Plus WALL parasol 2.50 m x 2.50 m, frame RAL 9006 white aluminium, fabric U101 white, wall holder.
Learn more...
Private installation, Germany
Amalfi Plus parasol wall, 3x4m, frame RAL 7045 telegrey, fabric acrylic U905 slate, edge trimming E908 grey.
Learn more...
Salsa Fiesta Urban Mex Grill, USA
Amalfi parasol 2.5 m x 2.5 m, frame RAL 7016 anthracite grey, fabric U302 orange, edge trimming orange with sewed-on valance.
Learn more...
Amalfi Plus parasol, private installation, Germany
Amalfi Plus parasol, 3x3m and 3.5×3.5m, frame RAL 7016 anthracite grey, fabric acrylic WP U906 grey, edge trimming 18 light grey, without valance, i, edge trimming E908 grey.
Learn more...
Steigenberger, Bad Wörishofen, Germany
Amalfi parasol, 3m square
Learn more...
Tudor House Dream South Beach Hotel, USA
Amalfi parasol, different sizes, frame RAL 7048 pearl mouse grey, fabric U910 black, edge trimming black.
Learn more...

* 5 years according to our warranty conditions

Big Ben Freestyle

Technical details

OperationCrank mechanism
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastAluminium mast with 84 mm diameter and 5 mm wall thickness
StrutsPower struts 40 x 20 mm with extra long U reinforcements
OptionsIncluding protective cover

The benefits for you

  • Large parasol with individual shape and size
  • Closes over tables and patio furniture thanks to sophisticated telescopic system
  • Extreme wind stability due to solid mast and hub made of high-grade aluminium
  • Many extras: radiant heater, LED strut lights and more

A hand-drawn sketch with all dimensions and optional extras suffices as a design draft. We will examine the feasibility of your draft in advance.

Design ideas
Fabrics and colours
Extras
Bases

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

Elegance – Integrated strut light

With the integrated Elegance LED strut light, you can make any patio shine. Designed to be elegant and unobtrusive, the modern LED strips provide pleasant light. The lights are easily switched on and off via the central switch on the mast or via remote control. The latter also allows you to dim the lights. Also available with coloured LED light strips.

Radiant heater

With the integrated radiant heaters for Big Ben, you can create a favorite a favorite place outdoors even on cool days. Perfectly suited for long evenings – in restaurants, of course, but also in the private garden. All wires are securely concealed inside of the frame. The detachable radiant heaters are simply plugged into the connections at the strut ends. Lights and heating can be switched on and off individually using the central switch at the top of the mast.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

Features

Durable design

Only the best materials and extra strong aluminium profiles are used in the robust design of Big Ben. The solid mast has a diameter of 84 mm and a wall thickness of 5 mm, making it stronger than most others in its class.

Practical alignment guide

This guide greatly simplifies the erection of large parasols. Simply screw adjusting screws into ground sleeve or mobile base. Position the parasol. Thread the alignment guide into the screw and push the parasol up. Then simply screw in place and it’s all done.

Wind-stable up to 100 km/h!

Its solid design makes Big Ben extra robust. To prove this, the professional parasol was tested by structural engineers in a wind tunnel, where the 3 x 3 m version can withstand even strong winds of up to 100 km/h!

Telescopic system

The advantage: the telescopic system extends the mast when closing! Tables and patio furniture can stay where they are.

Plus X Award for Big Ben Freestyle

The Big Ben Freestyle was awarded the Plus X Award 2018/2019 in the categories High Quality, Design and Functionality.

The Plus X Award is the innovation prize for brand quality. A panel of judges, made up of experts representing different sectors, awards the quality seals for the innovation prize: Innovation, Design, High Quality, Operating Comfort, Functionality, Ergonomics and Ecology. The approach of the Plus X Award is unique. Compared to other competitions, which consider themselves mostly design awards, the Plus X Award takes a nuanced approach with its seven quality seals. The Plus X Award quality seals are thus not only a benchmark for the best products, but also an unmistakable sign of brand quality.

Multicube

The Gabione Multicube is made up of robust steel cages with wood covering and is the ideal replacement for conventional parasol bases with flagstones. The mobile Multicube creates a comfortable atmosphere for additional guests and ensures flexibility when arranging your outdoor area – without having to install ground sleeves.

References

Big Ben Freestyle is as versatile as you need it to be.

Château de Courcelles, France
4 x Big Ben parasol 4.5 x 6 m, 2x Big Ben parasol 3 x 6 m, 2x Big Ben Freestyle with integrated “Elegance” lighting. Frame RAL 6020 chrome green, fabric colour 5890 red.
Learn more...

* 5 years according to our warranty conditions

Big Ben

Plus X Award for the Big Ben parasol

The Big Ben parasol with radio motor was awarded the Plus X Award 2024/2025 in the categories High Quality, Design, Ease of Use and Functionality.

The Plus X Award is the innovation prize for brand quality. An expert jury, consisting of various representatives from different industries, awards the seal of quality of the innovation prize in seven categories: Innovation, Design, High Quality, Ease of Use, Functionality, Ergonomics and Ecology. Compared to many other awards, the Plus X Award therefore goes far beyond a pure design award – it is a benchmark for the best products and an unmistakable sign of brand quality. Our tried-and-tested parasol all-rounder Big Ben convinced the jury in four categories.

Technical details

OperationCrank mechanism or motor
(optionally with solar panel or WMS wireless system)
FabricPremium acrylic awning fabric in more than 120 colours (light-fast and weather-resistant). Also optionally available with water-permeable or fireproof fabrics.
Frame200 RAL colours for masts and struts
MastAluminium mast with 84 mm diameter and 5 mm wall thickness
StrutsPower struts 40 x 20 mm with extra long U reinforcements
OptionsIncluding protective cover

The benefits for you

  • Professional large parasol spanning up to 7 m
  • Can close over tables and patio furniture thanks to telescopic system
  • Extreme wind stability due to solid mast and hub made of high-grade aluminium
  • Many extras: motor operation, radiant heater, LED strut lights and more
Sizes
Fabrics & colours
Extras
Bases

Shapes Size Height open Height closed Headroom Closing height Weight*
200 x 300 cm** 281 cm 355 cm 225 cm 164 cm 38 kg
200 x 350 cm** 287 cm 369 cm 225 cm 156 cm 42 kg
200 x 400 cm** 292 cm 383 cm 225 cm 147 cm 46 kg
250 x 300 cm** 285 cm 365 cm 225 cm 158 cm 42 kg
250 x 350 cm** 290 cm 377 cm 225 cm 150 cm 46 kg
250 x 400 cm** 295 cm 391 cm 225 cm 142 cm 51 kg
300 x 350 cm 294 cm 387 cm 225 cm 144 cm 51 kg
300 x 400 cm 299 cm 400 cm 225 cm 137 cm 55 kg
300 x 450 cm 304 cm 413 cm 225 cm 129 cm 58 kg
300 x 500 cm 309 cm 426 cm 225 cm 120 cm 61 kg
300 x 550 cm*** 314 cm 438 cm 225 cm 113 cm 70 kg
300 x 600 cm*** 319 cm 452 cm 225 cm 104 cm 75 kg
350 x 400 cm 303 cm 409 cm 225 cm 130 cm 58 kg
350 x 450 cm 307 cm 422 cm 225 cm 123 cm 61 kg
350 x 500 cm 313 cm 435 cm 225 cm 115 cm 64 kg
350 x 550 cm*** 317 cm 446 cm 225 cm 108 cm 75 kg
350 x 600 cm*** 322 cm 460 cm 225 cm 100 cm 80 kg
350 x 650 cm*** 328 cm 474 cm 225 cm 91 cm 85 kg
400 x 450 cm 311 cm 432 cm 225 cm 117 cm 64 kg
400 x 500 cm 316 cm 444 cm 225 cm 109 cm 68 kg
400 x 550 cm*** 321 cm 455 cm 225 cm 103 cm 80 kg
400 x 600 cm*** 326 cm 468 cm 225 cm 95 cm 85 kg
400 x 650 cm*** 331 cm 481 cm 225 cm 87 cm 90 kg
400 x 700 cm*** 336 cm 495 cm 225 cm 79 cm 95 kg
450 x 500 cm 323 cm 458 cm 225 cm 100 cm 80 kg
450 x 550 cm*** 324 cm 465 cm 225 cm 97 cm 85 kg
450 x 600 cm*** 329 cm 477 cm 225 cm 89 cm 90 kg
450 x 650 cm*** 334 cm 490 cm 225 cm 81 cm 95 kg
450 x 700 cm*** 340 cm 504 cm 225 cm 73 cm 100 kg
500 x 550 cm*** 328 cm 475 cm 225 cm 91 cm 90 kg
500 x 600 cm*** 333 cm 487 cm 225 cm 83 cm 95 kg
500 x 650 cm*** 338 cm 500 cm 225 cm 76 cm 100 kg
500 x 700 cm*** 343 cm 513 cm 225 cm 68 cm 105 kg
550 x 600 cm*** 340 cm 505 cm 225 cm 80 cm 100 kg
300 x 300 cm 289 cm 375 cm 225 cm 151 cm 51 kg
350 x 350 cm 298 cm 398 cm 225 cm 137 cm 55 kg
400 x 400 cm 307 cm 420 cm 225 cm 124 cm 59 kg
450 x 450 cm 316 cm 443 cm 225 cm 110 cm 64 kg
500 x 500 cm 325 cm 466 cm 225 cm 96 cm 70 kg
550 x 550 cm** 333 cm 486 cm 225 cm 83 cm 100 kg
600 x 600 cm** 342 cm 508 cm 225 cm 69 cm 105 kg
Ø 300 cm 274 cm 336 cm 225 cm 176 cm 50 kg
Ø 350 cm 280 cm 351 cm 225 cm 166 cm 53 kg
Ø 400 cm 287 cm 368 cm 225 cm 156 cm 56 kg
Ø 450 cm 292 cm 384 cm 225 cm 147 cm 59 kg
Ø 500 cm 299 cm 400 cm 225 cm 137 cm 63 kg
Ø 550 cm 305 cm 415 cm 225 cm 127 cm 67 kg
Ø 600 cm 311 cm 431 cm 225 cm 117 cm 71 kg
Ø 650 cm*** 317 cm 446 cm 225 cm 109 cm 105 kg
Ø 700 cm*** 323 cm 462 cm 225 cm 99 cm 112 kg
300 cm *** 280 cm 351 cm 225 cm 167 cm 39 kg
350 cm *** 288 cm 370 cm 225 cm 155 cm 40 kg
400 cm *** 295 cm 388 cm 225 cm 144 cm 42 kg
450 cm 302 cm 406 cm 225 cm 133 cm 45 kg
500 cm 309 cm 425 cm 225 cm 121 cm 48 kg
550 cm 316 cm 443 cm 225 cm 110 cm 52 kg
600 cm 324 cm 462 cm 225 cm 99 cm 56 kg

* Weight in kilos for a standard parasol without extras.
** These parasols have 10 struts (standard: 8 struts).
*** These parasols have 12 struts and a twelve-cornered wind roof.

Acrylic awning fabric (standard)

The tried and tested acrylic awning fabric is manufactured from 100% spinning nozzle dyed brand acrylic fabric. That means that the colour pigments – unlike in classic yarn dyeing – are applied during the fibre production. This ensures reliable protection against damaging UV radiation and permanently guarantees brilliant colours / constant weather and light-fastness. Furthermore, the acrylic fabric is especially tear-resistant and also dirt and water-repellent thanks to its impregnation with a special protective agent. The reliable solution for long-term outdoor use.

  • Water-proof up to 300-370 mm water column, EN 20811
  • High colour and weather fastness (7-8) of 8
  • Water and dirt-repellent
  • 100% acrylic 285–300 g/m²
  • Commercial printing possible on canopy and valance

Go to fabric selection…

Swela Sunvas Uni

This 100% polyester fabric has an innovative and effective dirt and water-repellent SNC impregnation. This makes the fabric air-permeable, weather-proof and resistant to rooting. The fabric also has a high elasticity without permanent stretching. It is therefore optimally suited for outdoor use.

  • Water-proof up to 350 mm water column, EN 20811
  • High light and weather fastness (7-8) of 8
  • Chlorine fastness (4-5) of 5
  • Polyester mesh with SNC impregnation
  • Surface weight approx. 310 g/m²
  • Water and dirt-repellent
  • Excellent sun protection (UPF 50+)

Frame colours for masts and struts

You can find over 200 RAL colours here.

WMS radio motor

Caravita BigBen Fernbedienung 10002628

The motorised Big Ben offers top-class convenience! With the press of a button on the remote control, several parasols can easily be opened or closed at the same time – and in only two minutes!An unbeatable advantage for restaurant owners – it’s never been so easy to use large parasols. The clever WMS motor can also be easily networked by radio with other sun shading products. So you have everything under control with just one hand-held transmitter.

Elegance – Integrated strut light

With the integrated Elegance LED strut light, you can make any patio shine. Designed to be elegant and unobtrusive, the modern LED strips provide pleasant light. The lights are easily switched on and off via the central switch on the mast or via remote control. The latter also allows you to dim the lights. Also available with coloured LED light strips.

Radiant heater

With the integrated radiant heaters for Big Ben, you can create a favorite a favorite place outdoors even on cool days. Perfectly suited for long evenings – in restaurants, of course, but also in the private garden. All wires are securely concealed inside of the frame. The detachable radiant heaters are simply plugged into the connections at the strut ends. Lights and heating can be switched on and off individually using the central switch at the top of the mast.

Windroof

The wind roof differs from the wind hood in that it has an additional frame. This lends the parasol an interesting look, makes it even more resistant to wind and also allow accumulated heat to escape more easily.

Parasol bases

Here you will find a parasol base to suit every parasol. CARAVITA offers a wide range of models for all purposes in many different colours and shapes. Learn more…

Ground sleeves and pole fittings

Ground sleeves are parasol bases to be set in concrete. Depending on the quality of the ground, ground sleeves are available in different lengths. The upper part of the ground sleeve can be removed. The part remaining in the ground is then at ground level. Learn more…

Features

Durable design

Only the best materials and extra strong aluminium profiles are used in the robust design of Big Ben. The solid mast has a diameter of 84 mm and a wall thickness of 5 mm, making it stronger than most others in its class.

Practical alignment guide

This guide greatly simplifies the erection of large parasols. Simply screw adjusting screws into ground sleeve or mobile base. Position the parasol. Thread the alignment guide into the screw and push the parasol up. Then simply screw in place and it’s all done.

Wind-stable up to 100 km/h!

Its solid design makes Big Ben extra robust. To prove this, the professional parasol was tested by structural engineers in a wind tunnel, where the 3 x 3 m version can withstand even strong winds of up to 100 km/h!

Telescopic system

The advantage: the telescopic system extends the mast when closing! Tables and patio furniture can stay where they are.

CARAVITA catalogue

Experience the world of CARAVITA

Multicube

The Gabione Multicube is made up of robust steel cages with wood covering and is the ideal replacement for conventional parasol bases with flagstones. The mobile Multicube creates a comfortable atmosphere for additional guests and ensures flexibility when arranging your outdoor area – without having to install ground sleeves.

References

The Big Ben is as versatile as you need it to be.

“Reiter” café, Donaueschingen, Germany
Samara Classic parasol (3 m round, fabric U202 yellow) with wind hood and Big Ben parasol (5.5m round, fabric Dickson Max yellow 6316), frame RAL 9016 traffic white, edge trimming yellow.
Learn more...
Café Leffe, Lille, France
Big Ben 4 m x 5 m round and 4 m x 4.5 m round, fabric 6020 Dickson Orchestra, frame RAL 7044, with heating and lighting.
Learn more...
Hotel “Neue Post”, Bodenmais, Germany
Big Ben parasol 4 m x 4 m, fabric U901 grey, edge trimming E902 grey, frame RAL 7001 silver grey, with integrated “Elegance” lighting.
Learn more...
Hotel Kempinski, Frankfurt, Germany
Big Ben parasol 5 m x 5 m, frame RAL 9006 white aluminium, fabric U804 light beige, with “Solamagic” heating and integrated “Elegance” lighting.
Learn more...
“La Stella” Italian restaurant, Salzburg, Austria
Big Ben parasol 3 m x 4 m, frame RAL 7016 anthracite, fabric U804 bordeaux, with integrated “Elegance” lighting.
Learn more...
My Father’s Moustache, Mount Pleasant, South Carolina, USA
Big Ben parasol 5 m x 5 m with integrated “Elegance” strut light, frame white, valance and fabric with screen printed logo.
Learn more...
“Sternbräu” restaurant, Salzburg, Austria
Big Ben parasol 2.5 m x 3 m, fabric U406 red, frame RAL 7016 anthracite, with integrated “Elegance” lighting.
Learn more...
“The Italian” restaurant, Recklinghausen
Big Ben parasol 5 m x 5 m, frame RAL 9006 white aluminium, fabric 6550 ivory, with commercial screen printing.
Learn more...
“Zum Murnauer” restaurant, Murnau, Germany
Big Ben XXL parasol, 4 m x 6 m, fabric acrylic pink U412, edge trimming E414 pink, frame RAL 9006 white aluminium, sewed-on valance.
Learn more...
Retirement home, Germany
Big Ben 5 x 5 m, fabric S492 Acapulco, edge trimming E407 cherry red, frame RAL 7035 light grey.
Learn more...
Big Ben parasol, private installation, Germany
Big Ben parasol, 5 x 5 m, fabric 7560 wheat, edge trimming 10 wheat, sewed-on valance.
Learn more...

* 5 years according to our warranty conditions
